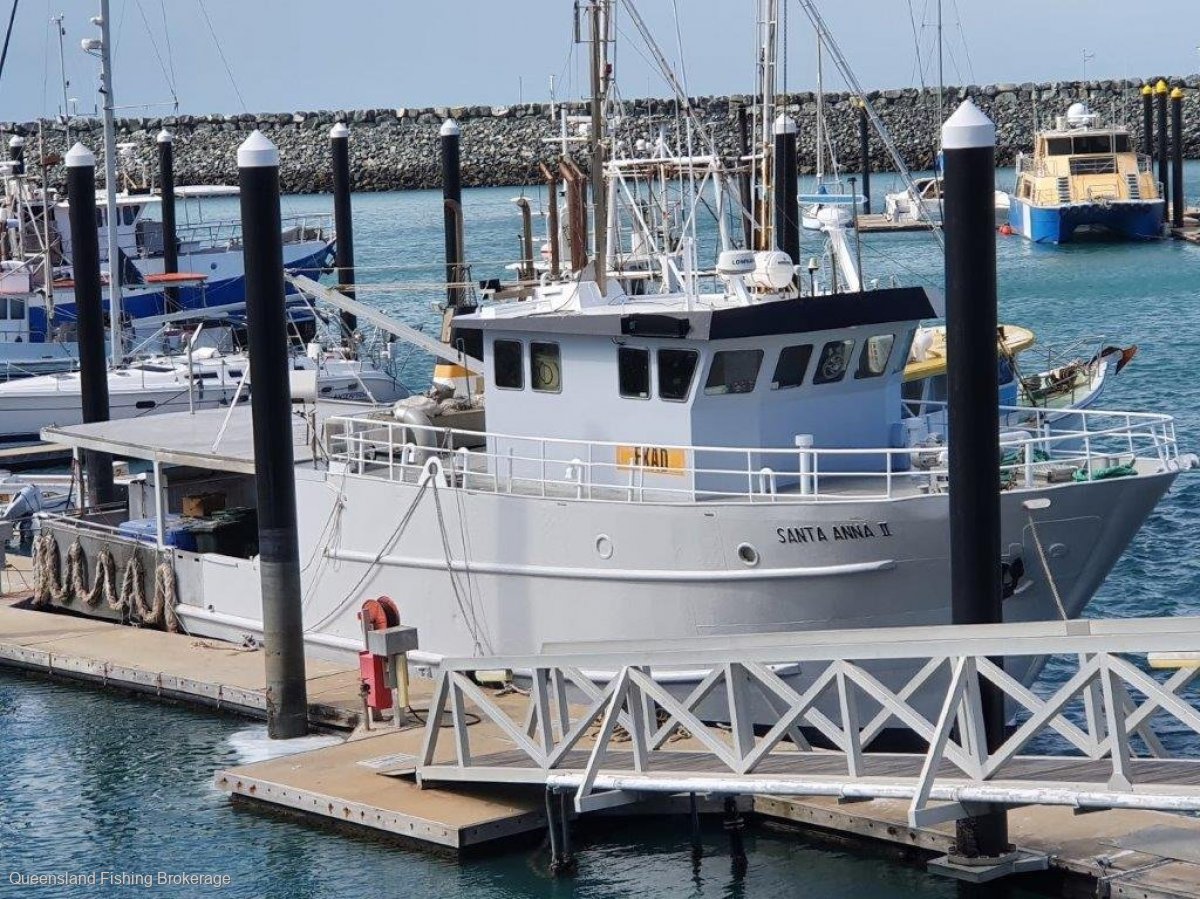

LV396 Santa Anna II

Price AU $450,000 Plus GST if applicable

Price
AU $450,000 Plus GST if applicable
Details
7 Dory Live Trout Operation - Refitted in 2021

Are you ready to take your fishing business to the next level? Look no further! We are offering a well maintained and comprehensively upgraded 7 dory live trout operation, refitted in 2021. This vessel has had a multitude of improvements, ensuring efficiency, and comfort for your fishing endeavors.

Key Features and Upgrades:

Licence:
Queensland Primary Commercial Fishing Licence + L2(7) + RQ(7)

Anchor and Winch System:
Rebuilt anchor winch with new clutch and bearings
Sandblasted and painted anchor winch
New anchor chain (20mm) and hawse pipe
Cleaned and painted anchor chain locker

Engine and Mechanical Systems:
New main engine fitted with new mounts
Rebuilt gearbox, new muffler, and lagging
New steel fuel lines from tanks to main motor and two auxiliaries
Refurbished seacock valves in the engine room, unused ones blanked off
Cleaned and painted bilge compartments with steam-cleaned ingots

Engine Room and Safety:
New hinges on engine room door, sandblasted, painted, and fitted with new seals
Watertight doors checked
New hydraulic steering pump in the engine room and helm wheelhouse
New hydraulic hoses from rudder room bulkhead engine room to wheelhouse helm
New rudder bearing, shaft bearing, and packing stuffing box

Fish and Refrigeration Systems:
Three new fish pumps for live tanks and deck wash, with new valves and raw pumps
New stainless-steel piping for raw water and fish tanks in the engine room
New stainless-steel freezer coming fitted

Deck and Structural Improvements:
New stainless-steel comings and hatch for front deck rope locker
New stainless-steel coming for shower access and new door
New stainless-steel air-condition frame and air vents on upper deck
Fixed fire air shut offs
New stainless-steel donuts for ropes on back deck
New steel floor under shower, concreted, and fitted with a new commercial toilet
New stainless-steel ladder to upper deck with handrail

Electrical and Navigation:
Rewired 240v, 415v, 12v & 24v under dash wheelhouse
New 3-phase shore power lead
New magnetron fitted to radar in wheelhouse
New navigation lights and stainless-steel mast on roof
New VHF, AM, FM, and GPS antennas

Paint and Finishing:

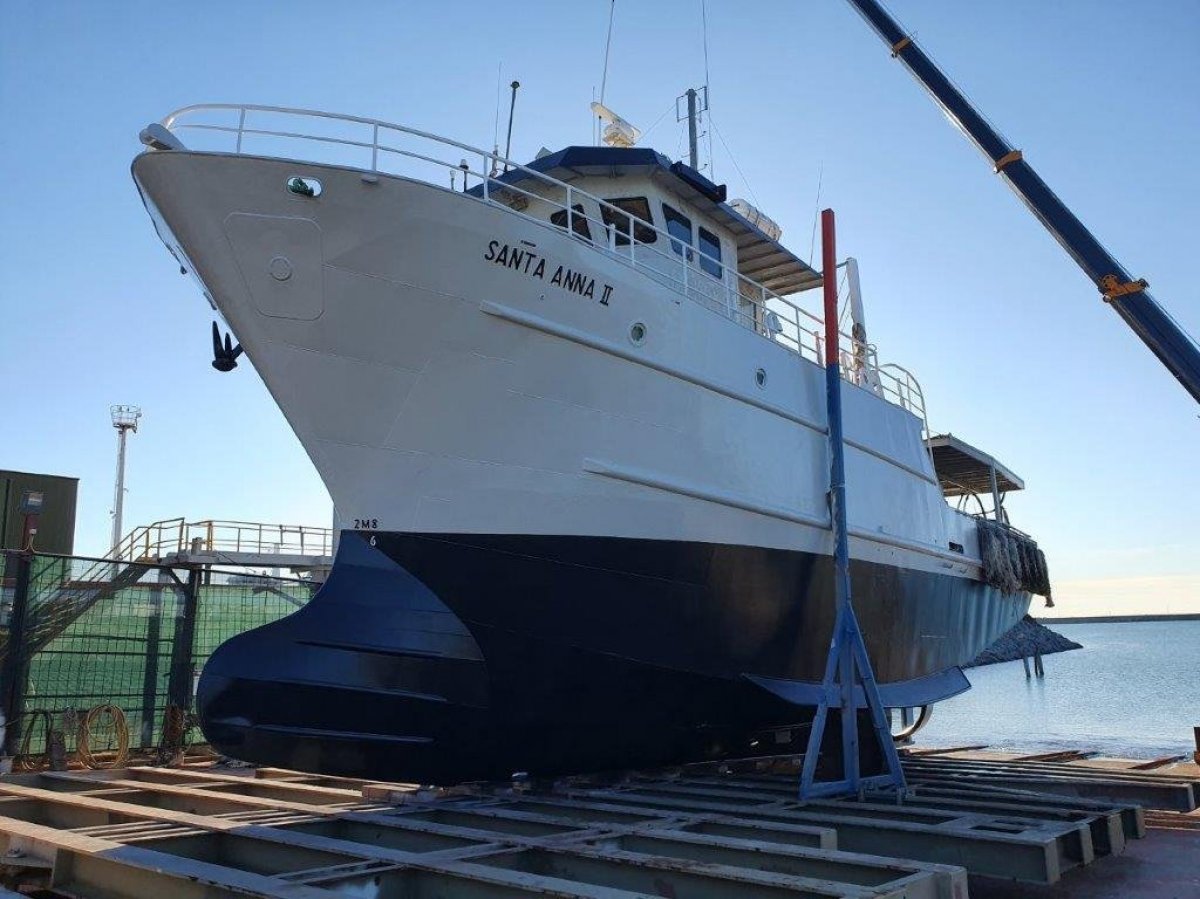

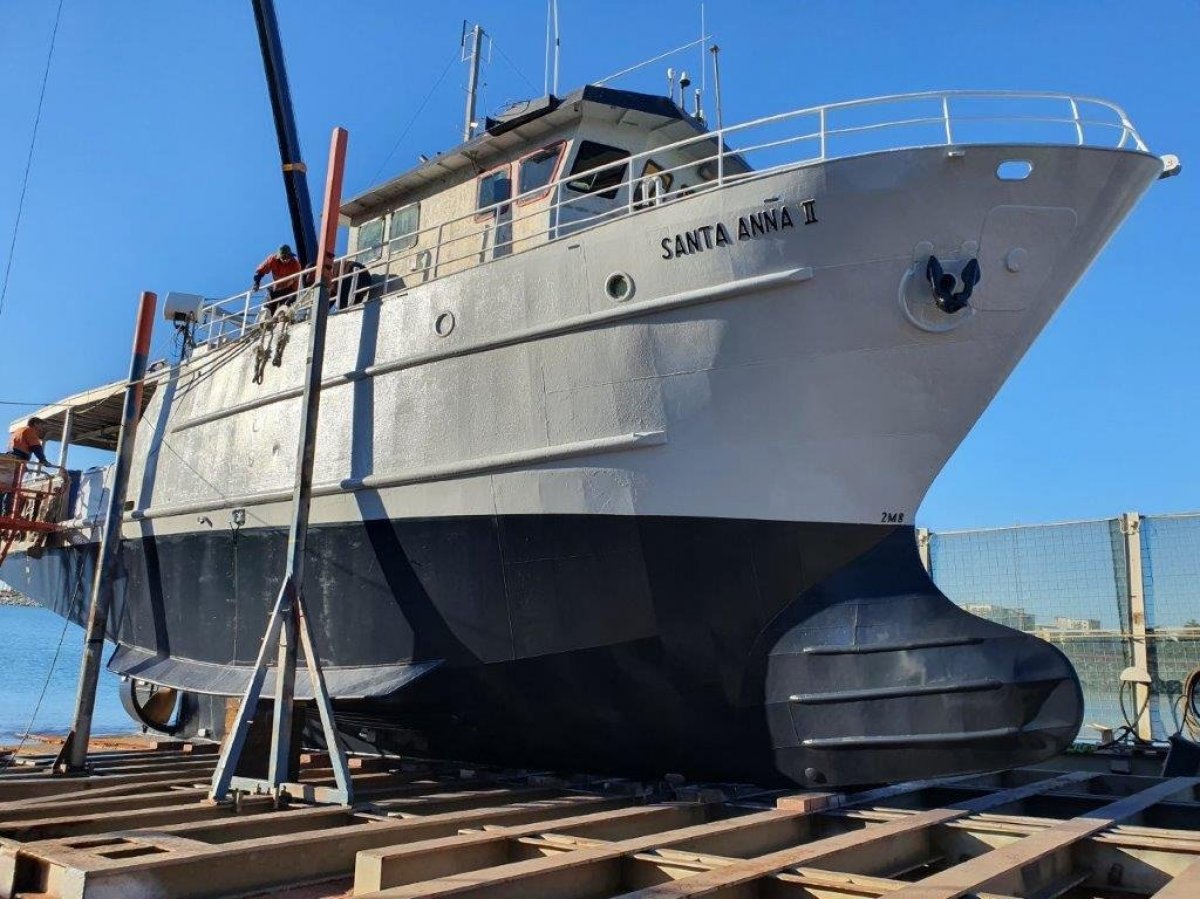

Sandblasted top deck, hull, topside, underwater, and under upper deck fuel tank
Painted decks, hull, top sides, and roof, including under petrol fuel tank upper deck
New skipper's chair in the wheelhouse for comfort

This 7 dory live trout operation is not only fully operational but also upgraded to meet the highest standards of modern fishing practices.

Vessel only option available at $350,000 + gst with license options available for sale or lease.


With extensive refitting and improvements, it's ready to provide you with reliable and efficient service for years to come.

Contact us today to schedule a viewing and make this exceptional vessel yours!
Region
Queensland
Usage
In-shore Fishing, Off-shore Fishing, Commercial
Reference
LV396
Year
1980 approximate
Builder
Kali Shipyard
Length
60' 11" - 18.56m
Beam
6.03m
Draft
3.15m
Hull Material
Steel
Engine
6HA2M-WDT
Engine Make
Yanmar
Number Engines
1
Genset
2 x John Deere 6068T both with 150kva
Fuel
30,000lt diesel approximately in 8 tanks + 4,000lt unleaded approximately in 2 tanks
Water
5,600lt approximately
Refrigeration
Domestic
Freezer
Domestic
Stove
4 burner + oven + microwave
Hot Water System
Yes
Cabins
Focsle- Port & starboard cabins
- The port cabin has 2 single berths on upper and lower bunks
- The starboard cabin has a double lower & a single upper aft to crew mess
Deckhouse- Accessed from a ladder in the galley and mess area abaft the cabins it is also accessed from the upper deck from the port & starboard side. Skipper's cabin & office
located behind, plus 1 x upper & 1 x lower berth
Aft cabin- 1 x upper & 1 x lower berths
Shower
Yes
Toilet
Yes
Air Conditioning
Yes
Dinghy
Live Trout Dories 4 x 5.2m & 3 x 4.8m Reefpro with 70hp outboards 12 month old with main and secondary tow lines
Ground Tackle
3 phase electric anchor winch with 1 x dreadnought anchor with 20mm cahin and 1 x 60lb plough with 24mm rope
Safety Gear
As required
Bilge Pumps
415v 3 ½ " Ebara Pump + 240v 2 " Fire & bilge + 24 v Rule 3700 Gph Bilge
Life Raft
12 person
Epirb
As required
Life Jackets
As required
Flares
As required
Fire Protection
As required
Electrics
12 & 24v DC + 240 &415v AC
Electronics
HF Icom M170 with AT130 auto aerial tuner
VHF Lowrance to wheelhouse and Icom to back deck
Satellite Phone Iridium
VMS 10 x YB3i/Rockfleet
Plotter Raytheon RC260
GPS Furuno GP31
Sounder Lowrance 16HD Carbon
Radar Furuno 32 mile
Autopilot TMQ AP4
Deck Gear
Live Pumps
1 - Lowara SHE4 8200 (160,000 l/h) new 2021
2 - Lowara SHE4 8200 (160,000 l/h) new 2021
3 - Lowara SHE4 8200 (160,000 l/h) new 2021
4 - Ebara suction pump
5 - Ebara spare suction pump
3 x G size oxy bottles
Survey
AMSA Certificate of Operation for 3B with 6 crew and 3C with 8 crew
Remarks
Bock 5 415v refrigeration compressor
400 carton freezer + 50 carton snap
Live tanks for approximatley 3,300 fish

Contact us for more information
